Who is Guilty in the Land of Alice? Only the Model Knows

Arguably, we are in the third artificial intelligence (AI) wave impacting supply chain management (SCM), the first being in the 1980s. To understand the potential value of AI in SCM, it is critical to understand it within the evolution of information and decision technology and recognize it is a moving target. A critical part of the AI wave in the 1980s was logical inference. These methods are making a quiet comeback as limits of pure large language models (LLMs) become apparent. The purpose of this article is to present an entertaining puzzle from the 1980s that illustrates the power of logical Boolean inference.

The Puzzle

The following logic puzzle is adapted from Raymond Smullyan’s book “Alice in Puzzle-Land.” The jam had been stolen, and the three suspects are the March Hare, the Mad Hatter and the Dormouse. It is possible none of them stole the jam or any combination of them (including all three) stole the jam.

They were all initially arrested, and each made one statement.

• March Hare: I am not guilty.
• Mad Hatter: I am not guilty.
• Dormouse: At least one of the others speaks the truth.

Further investigation produced the following conclusions (facts known to be true).

1. Only one of the suspects is guilty.
2. The March Hare and Dormouse did not both tell the truth.

With this information, the challenge is to determine who is guilty, who is not guilty or whether we lack sufficient information to make a clear determination. We will first outline the process without explicit use of binary computations and then demonstrate this fun and powerful computational approach.

The Solution Process

Step 1: Identify All Possible Solutions

In “math-speak,” this is a “state-space.” Table 1 shows the eight possible solutions ranging from all of them being not guilty (Option 1) to all of them being guilty (Option 8). There is one row for each option and one column for each character, where the value in the cell is the “guilt status” of this character in this option. A character can be “not guilty” (0) or guilty (1). The column “Option status” indicates whether, given the information available, this option is still possible (1) or has been moved to “not possible” (0). For now, all eight options are possible.

Our goal is to use the clues to move as many options as we can from the “possible state (1)” to the “not possible state (0).” If, after using all the information from our clues, we can have only one option left as possible (1), then we will know which characters stole the jam and have solved the mystery.

Step 2: Use Fact 1 to Move Options from Possible to Not Possible

Fact 1 states exactly one suspect is guilty. How can we use information to eliminate some options as possible? Only an option (row) with one value of “guilty” fits this fact. These options are 2, 3 and 5, as indicated in Table 2. Options 1, 4, 6, 7 and 8 are now classified as not possible.

Step 3: Use Fact 2 to Move Options from Possible to Not Possible – More Complicated

Fact 2 states that the March Hare and Dormouse didn’t both tell the truth – this fact is met when:

1. The March Hare has stated the truth and the Dormouse has lied.
2. The March Hare has lied and the Dormouse has stated the truth.
3. The March Hare has lied and the Dormouse has lied.

What is not possible is the fourth combination:

4. The March Hare has stated the truth and the Dormouse has stated the truth.

Therefore, any combination that makes the statement of the March Hare true and the statement of the Dormouse true is eliminated. Table 3 summarizes this result.

Our next task is to determine which options make the March Hare statement true and which options make the Dormouse’s statement true! Table 4 extends Table 2 with columns on whether one of the eight options makes the March Hare statement true (Column 5) and the Dormouse statement true (Column 6).

Which options make the March Hare statement true? The March Hare stated he is not guilty; therefore, any option in which the March Hare is not guilty makes his statement true, and any option in which he is guilty makes his statement false. Column 5 in Table 4 tells us if this option makes the March Hare statement true.

• March Hare statement true – Options 1, 2, 3 and 4 – value in March Hare column is “not guilty.”
• March Hare statement false – Options 5, 6, 7 and 8 – value in March Hare column is “guilty.”

Which options make the Dormouse statement true? The Dormouse stated, “At least one of the others speaks the truth.” The others are the March Hare and Mad Hatter. Each stated he was not guilty. Therefore, any option in which the March Hare is not guilty, the Mad Hatter is not guilty or both are not guilty makes the Dormouse statement true. However, if both are guilty, then the Dormouse statement is false. Column 6 in Table 4 classifies each option.

• Dormouse statement true – Options 1, 2, 3, 4, 5 and 6
• Dormouse statement false – Options 7 and 8 – the value in the March Hare column and Mad Hatter column for these options is “guilty”

Apply Fact 2 to move options from possible to “not possible.” Fact 2 states the March Hare and Dormouse both didn’t tell the truth. Any option in which the statement by the March Hare and Dormouse both are true is not permitted based on Fact 2. Column 7 in Table 4 has “yes” if both are true and “no” otherwise. The last column shows whether this option is possible based on just Fact 2 – Options 5, 6, 7 and 8 are possible – because the value in Column 7 is “no.”

Table 4: Which options are still possible after applying Fact 2?

Step 4: Combine Information from Fact 1 and Fact 2 to Solve the Mystery

For a candidate to be guilty, the option must be possible under Fact 1 and Fact 2.

• Table 2 identifies Options 2, 3 and 5 are possible based on Fact 1.
• Table 4 identifies Options 5, 6, 7 and 8 are possible based on Fact 2.

Table 5 adds one column to Table 2 with the possible/not possible status based on Fact 2. The only option in the possible lists for Fact 1 and Fact 2 is Option 5 – the March Hare is guilty and the other two characters not guilty. The mystery is solved – the March Hare stole the jam and acted alone.

What is a Computational Method to Solve the Mystery?

The Binary/Boolean Computational Model

Mathematical models much prefer numbers over characters. A favorite approach to problems like our mystery in which there are two possible states for a value (true/false, not guilty/guilty, possible/not possible) is the use of the values 0 and 1 – referred to as Boolean, or binary. Here, we outline the use of this computational model approach to our puzzle using Array Programming Language with its general array structures and functions.

Step 1: Convert Table 1 to a Binary Table

Table 6 has the same information as Table 1, but in binary form. For the character columns, “0” is not guilty, and “1” is guilty. For the option status column, “0” is not possible, and “1” is possible.

Step 2: Use Fact 1 to Move Options from Possible to Not Possible

Fact 1 states exactly one suspect is guilty. Computationally, this can be expressed as: If the sum of each row over the three characters is 1, then this option is possible (1). If not, “this option is not possible” (0). Table 7 shows these computations. There is a value of 1 in the option status column for Options 2, 3 and 5. In Table 2, these same options have the value “possible.”

Step 3: Use Fact 2 to Move Options from Possible to Not Possible – A Tad More Complicated

Fact 2 states that the March Hare and Dormouse didn’t both tell the truth. This eliminates any option in which the March Hare and Dormouse are both telling the truth.

Which options make the March Hare statement true? March Hare stated he is not guilty. Any option in which the value in the March Hare cell is 0 is an option in which the March Hare has told the truth. These are Options 1, 2, 3 and 4. Table 8, Column 5 has this computation; the value of 1 indicates for this option that the March Hare is telling the truth.

Which options make the Dormouse statement true? Any option in which the March Hare and Mad Hatter are both guilty (1) makes the Dormouse statement not true. If we apply the logical operator “and” (˄) between the March Hare column and Mad Hatter column, any option with a 0 value is an option in which the Dormouse is telling the truth. This is shown in Column 6. We want 1 to be the value where the Dormouse is telling the truth. Column 7 has this value using Column 6 = 0. A value of 1 in Column 6 indicates this option has the Dormouse telling the truth (1 to 6); a 0 indicates the Dormouse is not telling the truth.

Applying Fact 2 to move options from possible to not possible. Any option in which the statements by the March Hare and Dormouse are both true (value 1) is not permitted based on Fact 2. If Column 5 is 1 and Column 7 is 1, then the value in Column 8 is 0. Computationally, an option remains possible when {0 = (col_5˄col_7)}. Column 8 shows options still possible (value of 1): Options 5, 6, 7 and 8.

Step 4: Combine Information from Facts 1 and 2 to Solve the Mystery

For a candidate to be guilty, the option must be possible under Fact 1 and Fact 2. If we apply the logical operation and (^) between the last column of Table 7 (0 1 1 0 1 0 0 0) and the last column of Table 8 (0 0 0 0 1 1 1 1), then we get (0 0 0 0 1 0 0 0). This is summarized in Table 9.

The 1 in the fifth position of Column 7 tells us this is the only option that is possible for Fact 1 (Table 7) and Fact 2 (Table 8). This is the computational method to determine which options are possible for both facts.

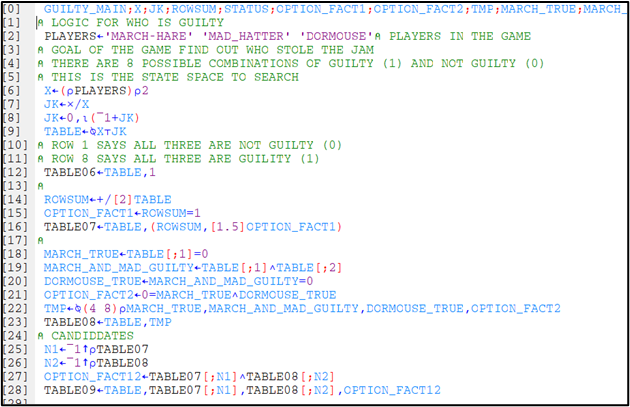

This logic requires only a few lines of code in APL.

Takeaway

Binary methods involve computations in which the only values permitted are 0 and 1. Although these methods date back to the 1960s, they are powerful in supporting the development of very helpful models that capture a diverse set of real-world situations in which the option is yes/no, on/off, success/failure … as well as solving fun puzzles.

Another powerful computational mechanism is vector of integers, but we’ll save this topic for another time.
